3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

Brand Name : Neopower

Model Number : C989

Certification : CE IEC FCC RoHs

Place of Origin : China

MOQ : 1 PC

Price : Negotiable according to Quantities

Payment Terms : Western Union, MoneyGram

Supply Ability : 50000 per day

Delivery Time : 3~7 days

Packaging Details : Standard Export Carton Box

Rated Current : 40A (6mm2), 30A (4mm2)

Rated Voltage : 800V DC

Insulation Resistance : ≥2000mΩ(power) ≥1000mΩ(signal)

Dielectric Withstanding Voltage : 3000V AC (power), 1000V AC(signal)

Wire Range : 25 mm2~50mm2

IP Rating : P67&IP6K9K,IPXXB

Operation Temperature : -40 ℃ ~+125 ℃

Salt Spray Resistance : 144H (mating state)

HVIL : Yes

Shell : Plastic

Angle : Straight Angle

Contact Now

3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

Part No.: C989

Features:

  • Secondary lock function

  • Cable range: 4~6mm2

  • Poka-yoke

  • HVIL

  • Touch-proof

  • 360°shielding

Application:

  • OBC
  • Oil Pump Control
  • Air Pump Control
  • PDU

Specifications:

  • Rated current: 40A (6mm2) 30A (4mm2)
  • Rated voltage:800V
  • Insulation resistance: ≥2000mΩ(power); ≥1000mΩ(signal)
  • Dielectric withstanding voltage:3000V AC (power), 1000V AC(signal)
  • Temperature Range: -40~+125 ℃
  • IP Rating: IP67&IP6K9K

Parameters:

Rated Current: 40A (6mm2) 30A (4mm2)
Rated Voltage:

800V
Insulation Resistance: ≥2000mΩ(power)≥1000mΩ(signal)
Dielectric Withstanding Voltage: 3000V AC (power), 1000V AC(signal)
Temperature Range: -40~+125 ℃
IP Rating: IP67&IP6K9K,IPXXB
Application:

OBC, Oil Pump Control, Air Pump Control, PDU

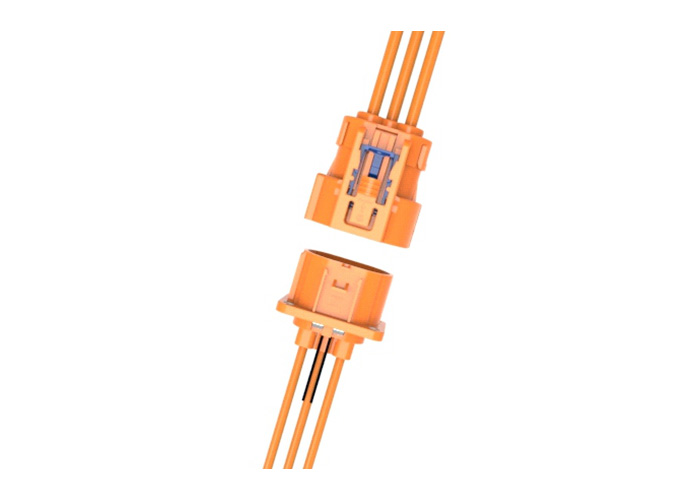

Product Pictures:

3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

Drawings:

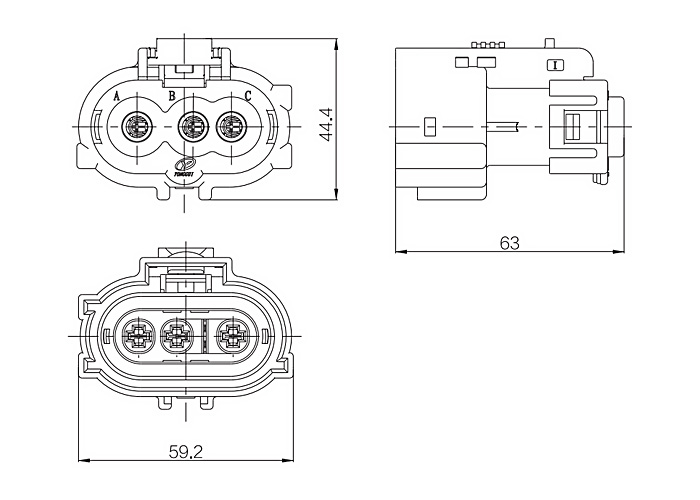

C989 3pin 180°plug

3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

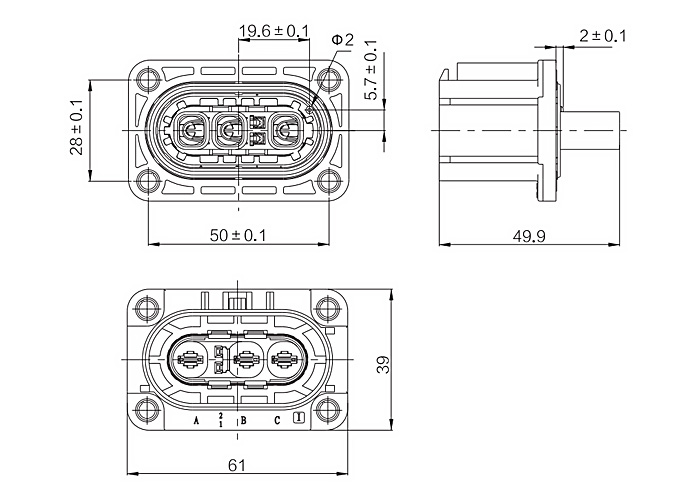

C989 3pin Receptacle

3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

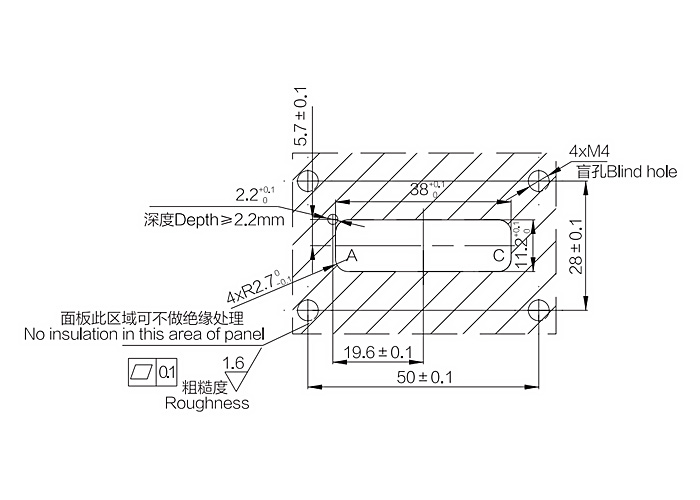

C989 3pin Receptacle Mounting Hole Design

3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

Neopower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, Neopower delivers top quality products and excellent services to customers around the world.

3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle

Certifications & Approvals

The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.

3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle3000V AC 3 Pin Automotive Connector Plastic Shell Plug Socket Recepatcle
